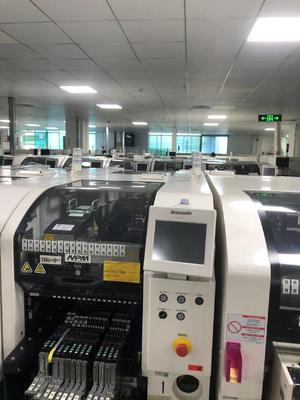

Panasonic NPM W Chip Mounter Your Ultimate Solution for High Efficiency SMT Assembly

The Panasonic NPM - W is a cutting - edge surface - mount technology (SMT) pick - and - place machine that redefines the standards of high - efficiency electronic manufacturing. Engineered with advanced features and intelligent design, it caters to a wide range of production needs in the electronics industry.

1. Exceptional Placement Performance

- Multiple Mounting Heads:
- 16 - Nozzle Head: When operating in high - production mode (ON), it reaches an impressive top speed of 70,000 cph (0.051s/ chip), with a placement accuracy of ±40μm/ chip (Cpk≥1). In high - accuracy mode (OFF), the speed is 62,500 cph (0.058s/ chip), and the accuracy can be enhanced to ±30μm/ chip (optional ±25μm/ chip under specific Panasonic - specified conditions). It can handle components from as small as 0402 chips to those with dimensions of L6×W6×T3, making it ideal for high - volume production of small - sized components.
- 12 - Nozzle Head: Offers a maximum speed of 62,500 cph (0.058s/ chip) and a placement accuracy of ±40μm/ chip (Cpk≥1). It can accommodate components from 0402 chips to L12×W12×T6.5, suitable for a diverse range of component sizes in medium - speed, high - accuracy applications.
- 8 - Nozzle Head: With a maximum speed of 40,000 cph (0.090s/ chip), it provides a placement accuracy of ±40μm/ chip, ±30μm/QFP 12 - 32mm, and ±50μm/QFP less than 12mm. This head can handle components from 0402 chips to larger ones up to L32×W32×T12, enabling the placement of a variety of components, including some larger integrated circuits.
- 3 - Nozzle Head: Although having a lower speed of 11,000 cph (0.33s/QFP), it ensures a placement accuracy of ±30μm/QFP. It can handle components ranging from 0603 chips to large - sized components up to L150×W25(对角152)×T28, making it suitable for placing large components such as connectors and some specialized components.

2. High - Precision and High - Productivity Features

- Advanced Camera System: Equipped with an award - winning multi - recognition camera, the NPM - W combines component alignment, thickness measurement, and 3D coplanarity inspection in one step. This not only improves placement accuracy but also enhances the overall quality of the assembled PCBs, reducing the likelihood of defects.
- High - Rigidity Gantry: The high - rigidity gantry provides a stable platform for the mounting heads, ensuring smooth and accurate movement during the placement process. This stability contributes to the high - precision placement of components, even at high speeds.

3. Versatile Component Compatibility
The NPM - W can handle a vast range of components, from the tiniest 0402 chips to large - sized components such as connectors with dimensions up to L150×W25×T28. It supports various component types, including SOP, QFP, CSP, BGA, aluminum electrolysis capacitors, volume controls, trimmers, coils, and more. This wide component compatibility makes it suitable for a diverse range of electronic products, from consumer electronics to industrial equipment.

4. Flexible Production Modes

- Dual - Track Conveyor System: The machine features a dual - track conveyor system, offering three production modes: independent production mode, alternating production mode, and a combination of both. In independent production mode, the front and rear heads can work on different PCBs simultaneously, which is highly efficient when producing different product models at the same time. Alternating production mode allows the heads to alternate between the two tracks, reducing idle time and increasing overall productivity. This flexibility enables manufacturers to optimize production according to their specific production requirements.
- Easy Machine Setup and Changeover: The NPM - W supports easy machine setup and quick changeover between different production jobs. The system software can quickly adjust settings such as track width, placement parameters, and component data, reducing downtime during job changes. This is crucial for manufacturers who need to respond quickly to changing market demands and production schedules.

5. Large - Format PCB Handling
The NPM - W can handle large - sized PCBs, with a maximum size of L750×W550mm in single - track mode for overall mounting. In dual - track mode, it can handle PCBs up to L750×W260mm for overall mounting. This makes it suitable for manufacturing large - format printed circuit boards, such as those used in industrial control systems, large - screen displays, and some types of power electronics.

6. Specifications

- Power Supply: Compatible with three - phase AC 200V±10V / AC 220V±10V / AC 380V±10V / AC 400V±10V / AC 420V±10V / AC 480V±10V, with a power consumption of 2.5kVA.
- Pneumatic Source: Requires 0.5MPa, 200L/min (A.N.R.).
- Dimensions: W1280mm×D2332mm×H1444mm.
- Weight: Approximately 2250kg (subject to change depending on optional components).

Custom Attributes

- Component Feeding Options: Supports a wide range of component feeding methods, including various widths of tape feeders (8/12/16/24/32/44/56mm), with a maximum of 120 consecutive feeders (for 8mm tape, double - type tape feeder with small reels). It also supports single - type and double - type tray feeders, as well as rod - type feeders, providing flexibility in component supply according to production requirements.
- Line Integration and Expansion: The NPM - W can be easily integrated into existing SMT production lines. Its modular design allows for seamless connection with other Panasonic SMT equipment, such as printers, inspection machines, and reflow ovens, as well as with third - party equipment. This enables manufacturers to build a highly customized and efficient production line. Additionally, it offers the potential for future expansion, allowing manufacturers to add more functionality or capacity as their business grows.
- Energy - Saving Design: Designed with energy - saving features in mind, the NPM - W helps reduce overall production costs by consuming less power compared to some traditional SMT machines. This not only benefits the manufacturer's bottom line but also contributes to environmental sustainability.
